2 IN 1 Aerial Camera System

IGI's 2IN1 aerial camera systems and more precisely the IGI UrbanMapper & IGI Penta-DigiCAM are the result of the company's passion for airborne developments, providing professional photogrammetry.

The IGI UrbanMapper is a large format digital aerial camera. Simultaneously it is also an oblique aerial camera system, providing four views to all sides. It is the next generation of digital aerial camera systems for the production of large-format nadir and oblique aerial imagery within one single flight.

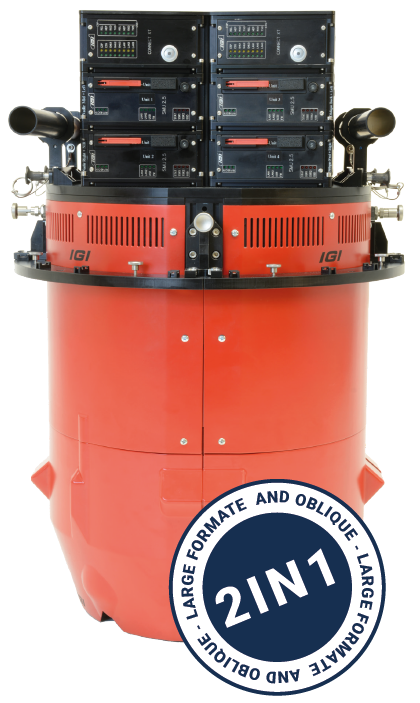

Based on the IGI UrbanMapper, IGI introduces the IGI UrbanMapper-2. The IGI UrbanMapper-2 utilizes the new 150 MP Back Side Illuminated, BSI-CMOS technology to provide ultrahigh resolution imagery. With the shutter speed up to 1/2000 of a second and the high dynamic range of 83dB, the IGI UrbanMapper-2 is designed to produce brilliant imagery even under challenging light conditions.

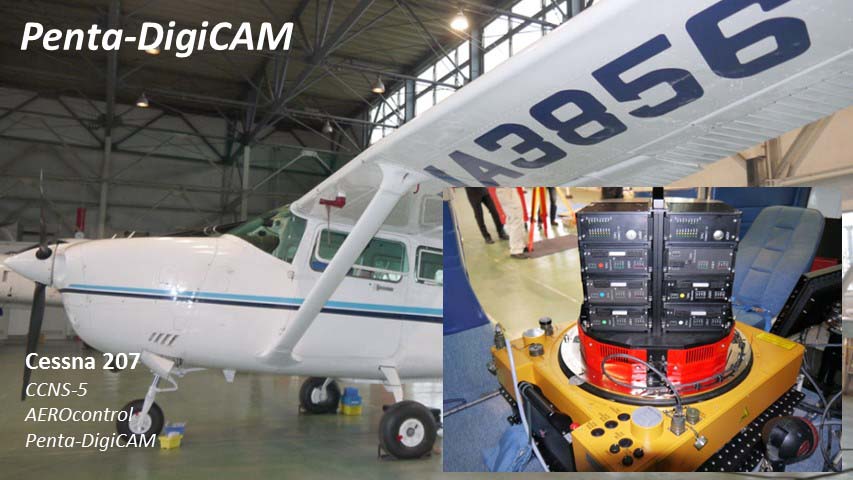

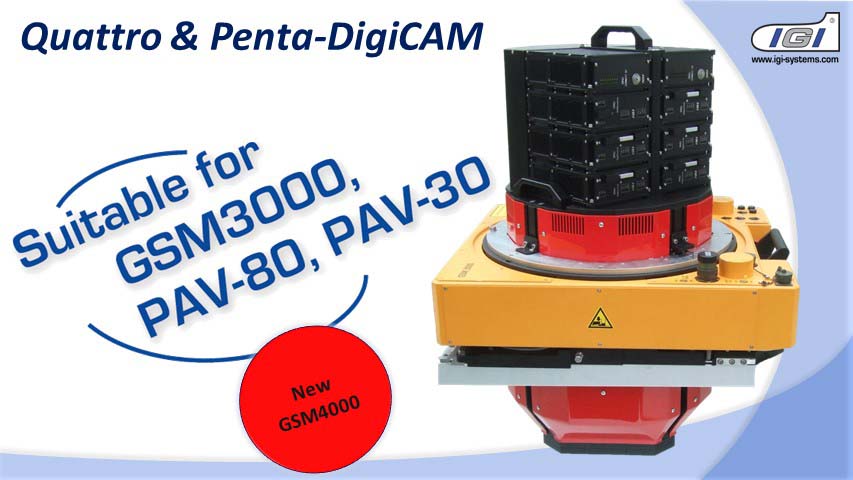

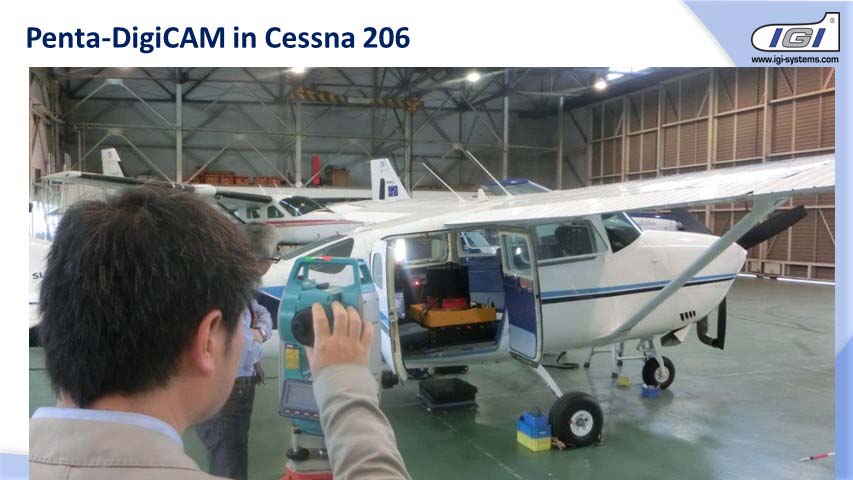

The IGI Penta-DigiCAM is part of the IGI DigiCAM range since 2008. The Penta-DigiCAM is based on five DigiCAM modules, four of which are arranged oblique and one nadir. All GNSS/IMU and camera control units are integrated and mounted on top of the camera. The system is optimal for capturing of nadir & oblique imagery within one single flight.

IGI UrbanMapper-2 Performance
  • Nadir Image size, RGB 34,500 x 14,100 px, 150MP
  • Nadir Image size, NIR 30,460 x 14,100 px, 150MP
  • Oblique Image size, RGB 14,204 x 10,652 px, 150MP, portrait or landscape at choice
  • Sensor Technology: BSI (Back Side Illuminated)-CMOS
  • Pixel Size : 3,76
  • Maximum Frame Rate: 0.6 sec
  • High Dynamic Range 83dB
  • Channels: RGBI, RGB, CIR, NIR (nadir), 4x RGB (oblique)
  • IGI SMU-2 (Sensor Management Unit)
  • Up to 16TB Storage Units (with RAID Option)
  • Integrated Mission Planning & Flight Guidance (CCNS-5 & IGIplan)
  • Integrated Sensor Management (IGIvisu)

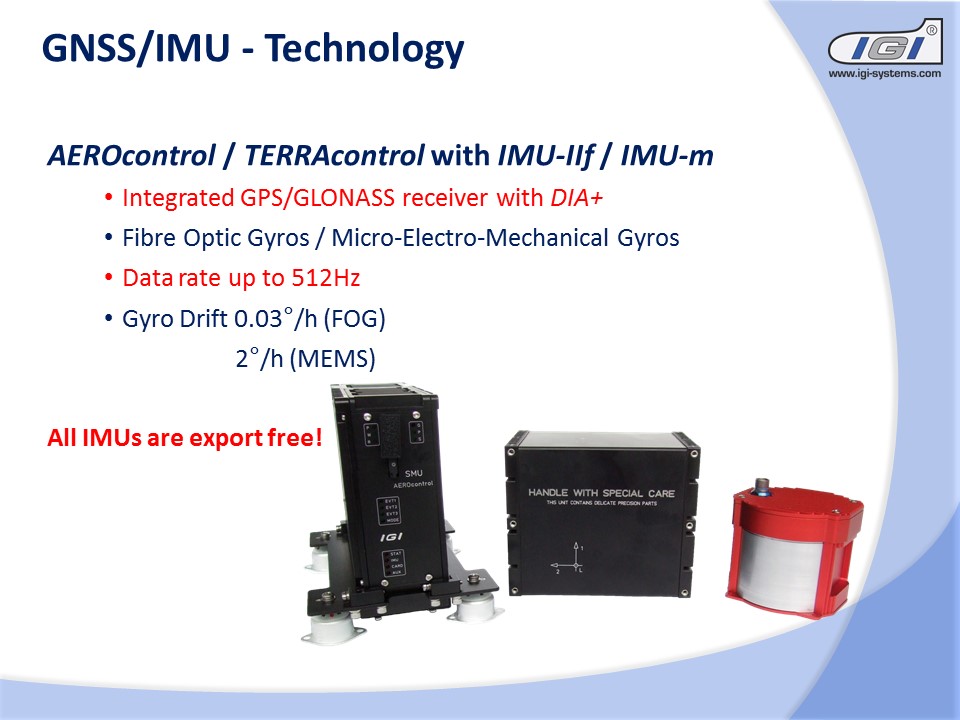

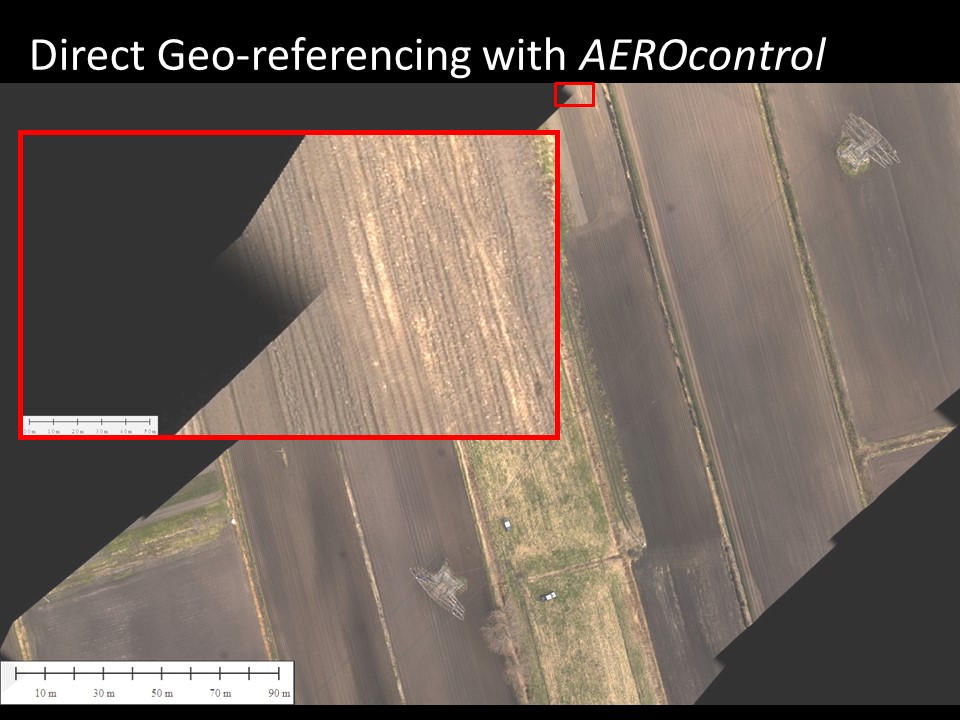

  • Integrated GNSS/IMU System (AEROcontrol)
  • 10" or 20" Operator Screen
IGI UrbanMapper-2
  • Nadir Image size, RGB 34,500 x 14,100 px, 150MP
  • Nadir Image size, NIR 30,460 x 14,100 px, 150MP
  • Oblique Image size, RGB 14,204 x 10,652 px, 150MP
  • Sensor Technology: BSI (Back Side Illuminated)-CMOS
  • Pixel Size : 3,76
  • Maximum Frame Rate: 0.6 sec
  • High Dynamic Range 83dB
  • Channels: RGBI, RGB, CIR, NIR (nadir), 4x RGB (oblique)
  • IGI SMU-2 (Sensor Management Unit)
  • Up to 16TB Storage Units (with RAID Option)
  • Integrated Mission Planning & Flight Guidance (CCNS-5 & IGIplan)
  • Integrated Sensor Management (IGIvisu)
  • Integrated GNSS/IMU System (AEROcontrol)
  • 10" or 20" Operator Screen
IGI UrbanMapper
  • Nadir Image size, RGB 28,200 x 11,500 px, 150MP
  • Nadir Image size, NIR 24,900 x 11,500 px, 100MP
  • Oblique Image size, RGB 11,664 x 8,750 px, 100MP
  • Sensor Technology: BSI (Back Side Illuminated)-CMOS
  • Pixel Size : 4,6
  • Maximum Frame Rate: 0.6 sec
  • High Dynamic Range 84dB
  • Channels: RGBI, RGB, CIR, NIR (nadir), 4x RGB (oblique)
  • IGI SMU-2 (Sensor Management Unit)
  • Up to 16TB Storage Units (with RAID Option)
  • Integrated Mission Planning & Flight Guidance (CCNS-5 & IGIplan)
  • Integrated Sensor Management (IGIvisu)
  • Integrated GNSS/IMU System (AEROcontrol)
  • 10" or 20" Operator Screen

IGI Penta DigiCAM-280
  • Nadir Image size, RGB 20,200 x 14,110 px, 285MP
  • Oblique Image size, RGB 14,204 x 10,652 px, 150MP
  • Sensor Technology: BSI(Back Side Illuminated)-CMOS
  • Pixel Size : 3,76
  • Maximum Frame Rate: 0.6 sec
  • High Dynamic Range 83dB
  • Channels: RGBI, RGB, CIR, NIR (nadir), 4x RGB (oblique)
  • IGI SMU-2 (Sensor Management Unit)
  • Up to 12TB Storage Units (with RAID Option)
  • Integrated Mission Planning & Flight Guidance (CCNS-5 & IGIplan)
  • Integrated Sensor Management (IGIvisu)
  • Integrated GNSS/IMU System (AEROcontrol)
  • 10" or 20" Operator Screen
IGI Penta DigiCAM
  • Nadir Image size, RGB 14,204 x 10,652 px, 150MP
  • Nadir Image size, NIR 11,608 x 8,708 px, 100MP
  • Oblique Image size, RGB 11,664 x 8,750 px, 100MP
  • Sensor Technology: BSI (Back Side Illuminated)-CMOS
  • Pixel Size : 3,76
  • Maximum Frame Rate: 0.6 sec
  • High Dynamic Range 83dB
  • Channels: RGBI, RGB, CIR, NIR (nadir), 4x RGB (oblique)
  • IGI SMU-2 (Sensor Management Unit)
  • Up to 12TB Storage Units (with RAID Option)
  • Integrated Mission Planning & Flight Guidance (CCNS-5 & IGIplan)
  • Integrated Sensor Management (IGIvisu)
  • Integrated GNSS/IMU System (AEROcontrol)
  • 10" or 20" Operator Screen

3D City Model
