IGI - Integrated Geospatial Innovations

Medium Format Aerial Camera System

IGI's DigiCAM is a result of the company's passion for airborne developments. DigiCAM is a aerial digital camera system in medium format, providing professional photogrammetry.

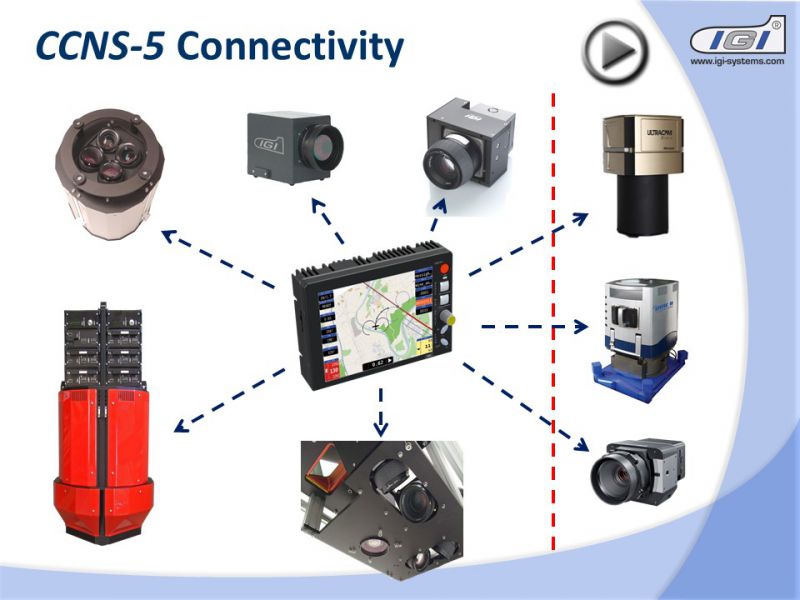

DigiCAM can be combined with IGI's products CCNS-5 and AEROcontrol in order to get access to a complete solution for generating directly georeferenced images on a planned mission.

DigiCAM-150
  • Image size 14,204 x 10,652 px, 150 MP
  • Sensor Technology: Phase One BSI-CMOS
  • Pixel Size : 3,76
  • Maximum Frame Rate: 0,6 sec
  • High Dynamic Range 83dB
  • Channels: RGBI, RGB, CIR, NIR
  • IGI SMU-2 (Sensor Management Unit)
  • Up to 4TB Storage Units (with RAID Option)
  • Integrated Mission Planning & Flight Guidance (CCNS-5 & IGIplan)

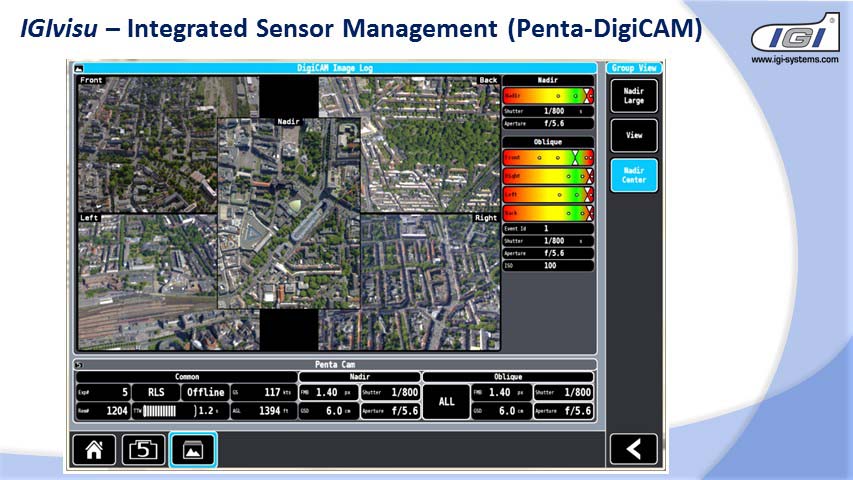

  • Integrated Sensor Management (IGIvisu)
  • Integrated GNSS/IMU System (AEROcontrol)
  • IGI FRAMEtrack: real-time, geo-referenced imagery previews during the flight
  • IGI IPS: Image Processing Software with export to standard formats
  • 10" or 20" Operator Screen

DigiCAM-100
  • Image size 11,664 x 8,750 px, 100 MP
  • Sensor Technology: Phase One BSI-CMOS
  • Pixel Size : 3,76
  • High Dynamic Range 83dB
  • Maximum Frame Rate: 0.6 sec
  • Channels: RGBI, RGB, CIR, NIR
  • Convertible from Large Format to Oblique Camera System (IGI Dual Housing)
  • IGI SMU-2 (Sensor Management Unit)
  • Up to 4TB Storage Units (with RAID Option)
  • Integrated Mission Planning & Flight Guidance (CCNS-5 & IGIplan)
  • Integrated Sensor Management (IGIvisu)
  • IGI FRAMEtrack: real-time, geo-referenced imagery previews during the flight
  • IGI IPS: Image Processing Software with export to standard formats
  • Integrated GNSS/IMU System (AEROcontrol)
  • 10" or 20" Operator Screen
DigiCAM-50
  • Image size 8,280 x 6,208 px, 50 MP
  • Sensor Technology: Phase One BSI-CMOS
  • Pixel Size : 5,3
  • High Dynamic Range 84 dB
  • Channels: RGB
  • Convertible from Large Format to Oblique Camera System (IGI Dual Housing)
  • IGI SMU-2 (Sensor Management Unit)
  • Up to 4TB Storage Units (with RAID Option)
  • Integrated Mission Planning & Flight Guidance (CCNS-5 & IGIplan)
  • Integrated Sensor Management (IGIvisu)
  • IGI FRAMEtrack: real-time, geo-referenced imagery previews during the flight
  • IGI IPS: Image Processing Software with export to standard formats
  • Integrated GNSS/IMU System (AEROcontrol)
  • 10" or 20" Operator Screen
